Homeowner/Landowner Riders
R 316TX
$12,790.00Rec. retail price incl. GST $13,290.00SKU: 970542710- Power/fuel typePetrol
- Cutting width, min94 cm
HOT PRICE
Save up to $700! This season take advantage of hot prices on selected Wheeled products for a limited time!*
Terms & Conditions: *Offer effective 01/09/24 - 31/12/24, at participating Husqvarna Dealers and Husqvarna.com/nz only, while stocks last. Valid for the following models only - Garden Tractors - TS112, TS114, TS142T, TS142TXD, TS242TXD, TS248TXD, TS354, TC138T. TC114 & TC242TX. Zero-Turns - Z146, Z242E & Z242F. Riders - R214TC, R316TX-CC103 & R316TSXAWD-CC12. CLICK HERE for more info & offers.
Product description

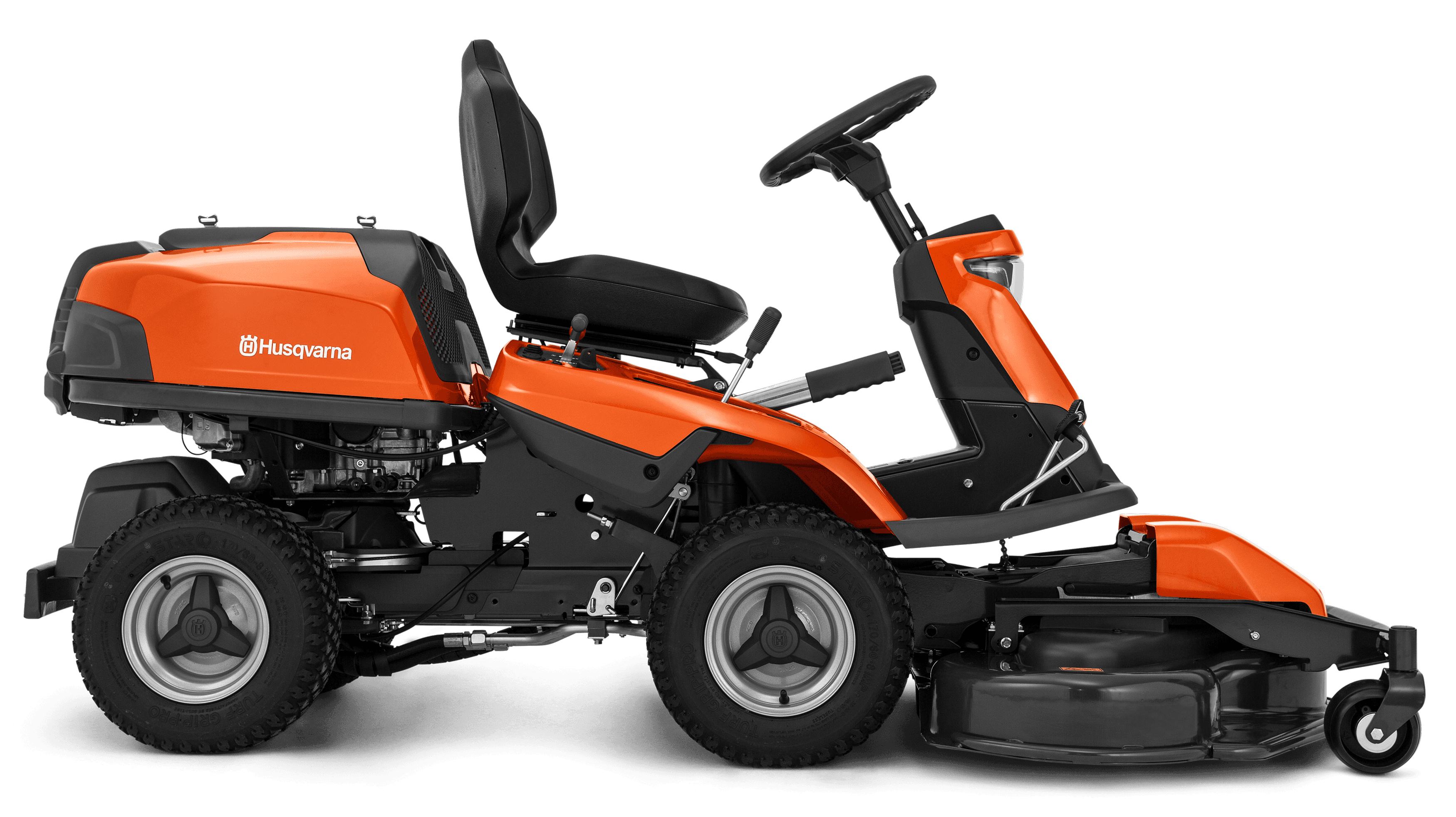

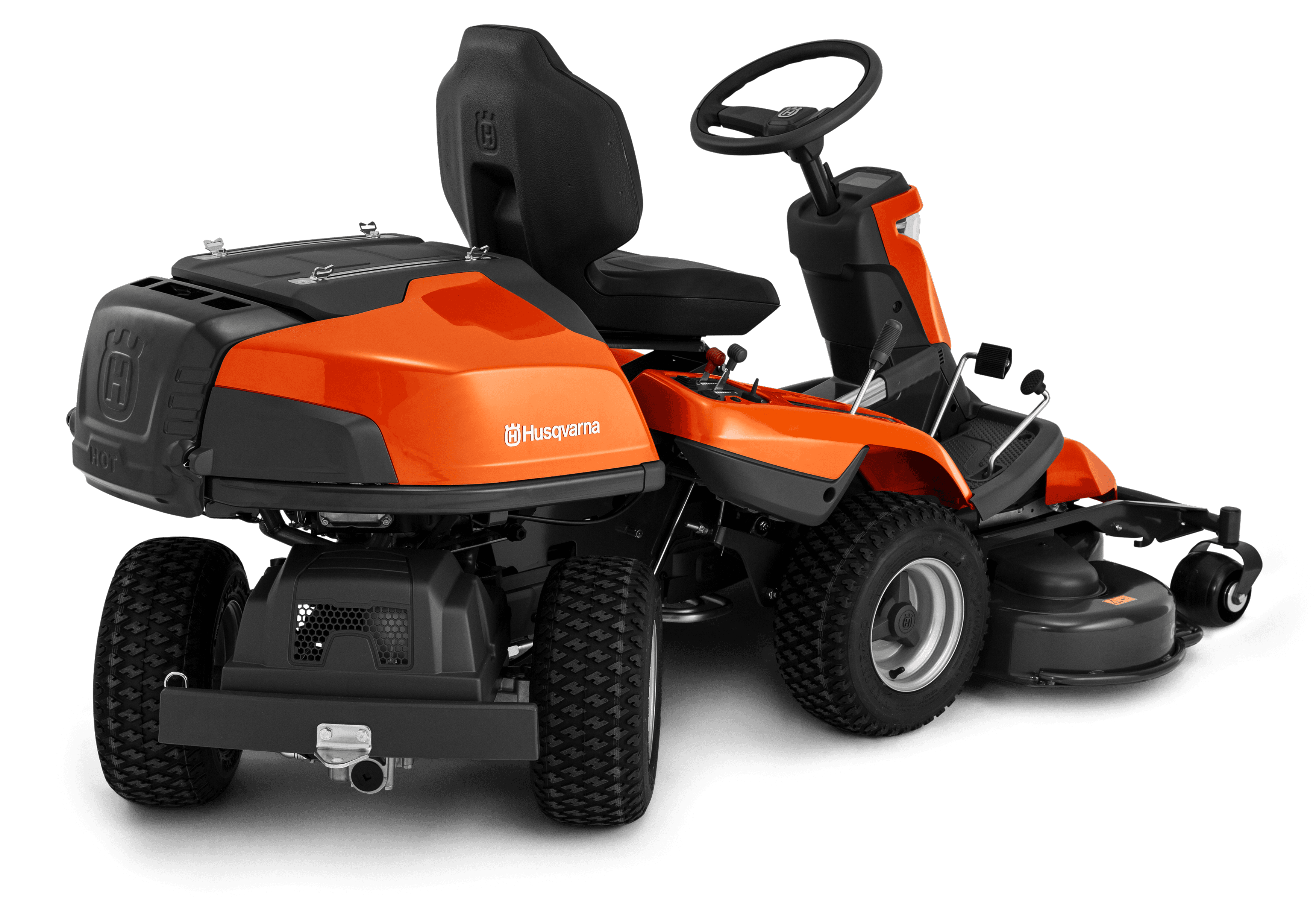

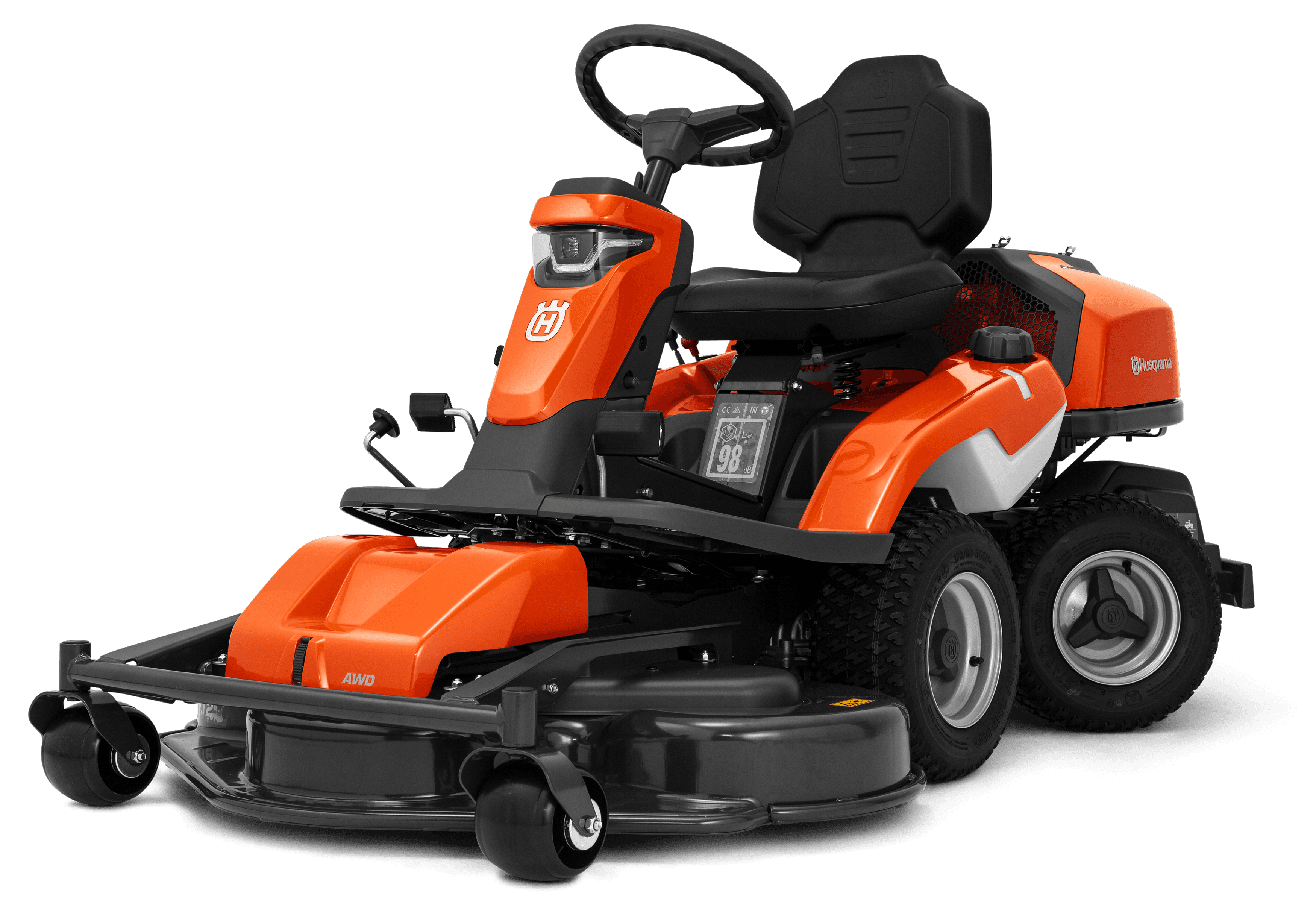

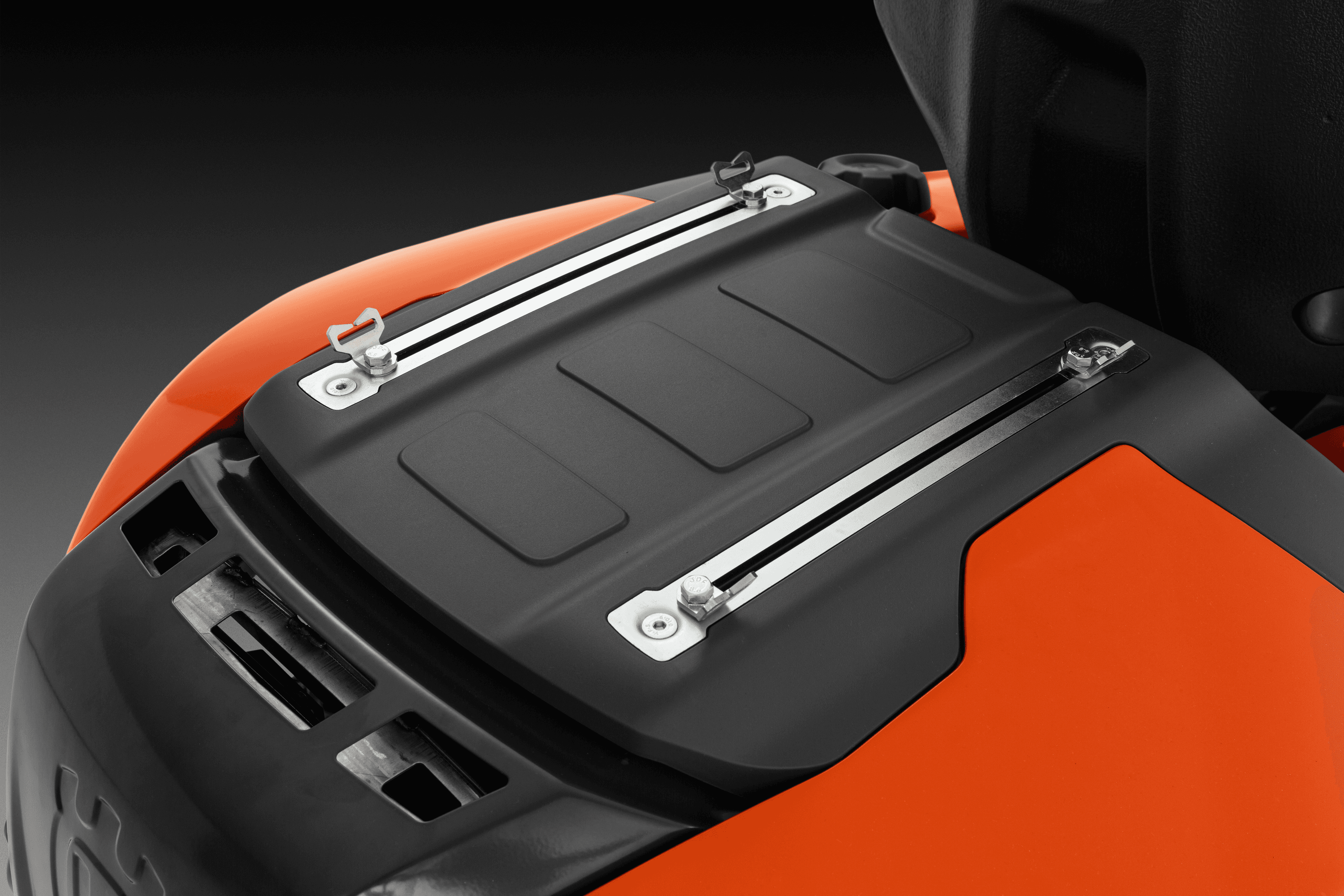

When taking on challenging lawns, you need a high-performance ride-on lawn mower with a wide range of accessories available. Husqvarna R 316TX comes with a V-twin engine and 103cm combi cutting deck with the option of BioClip® mulching or rear ejection. The articulated steering makes tight turns smooth, while LED headlights provide greater visibility. Integrated rails on the engine hood make it easy to attach accessories like cargo holder. Ready for Husqvarna Connect with Bluetooth®.
Product Information
Features (28)
Adjustable steering wheel
Steering wheel height can be adjusted with a telescopic steering column for excellent ergonomics and comfort.
Floating cutting deck
The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn.
Hour meter with service minder
Indicates when it's time to service your lawn mower, making it easy to keep it in the best condition.
Pivoting rear axle
The rear axle is pivoting to get maximum traction on the drive wheels also on uneven surfaces.
Attachment frame
The attachment frame makes it easy to shift between cutting decks and front-mounted attachments.
Four large wheels
Equally sized wheels for a comfortable ride
HMI Display
The intuitive HMI display guides through visual symbols and warning sounds to facilitate the driver's work.
Attachments for versatile usage
A wide range of cutting decks and attachments will make your front mower versatile, all year round.
Combi cutting deck
Combi cutting deck
Automatic blade engagement
The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work.
Pedal-Operated Transmission
Speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control.
Easy-access cutting height lever
The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.
Transparent fuel tank
Large, transparent fuel tank makes it easy to check the fuel level and plan your work accordingly.
Engine behind driver
The rear-mounted engine provides a better overview of the mowing, and less emissions in the driver’s area.
Storage compartment
The open left storage makes it easy to access your items while mowing.
Bottle holder
Convenient bottle holder for refreshments.
External fuel cap
Thanks to the external fuel cap, you don't have to open the engine hood when refueling.
Dual LED lights for improved visibility.
Dual LED lights for improved visibility.
Articulated steering
The articulated steering gives excellent maneuverability and facilitates driving around obstacles.
Comfortable driver's position
With a Rider you get safety, stability and traction on both flat grounds and hillsides.
Front-mounted cutting deck
Front-mounted deck for optimum accessibility
Pivoting support wheels
The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns.
BioClip®
BioClip® (mulching) cuts the grass into fine pieces that quickly decompose and become a natural fertiliser
Easy-access service points
The tilting hood and easy-access servicing points make maintenance and servicing easy.
Service position
The cutting deck can be tilted up into service position for easy access during cleaning or service.
12V socket outlet
12V socket outlet makes it possible to plug in extra electric equipment, charge your cellular phone etc.
Husqvarna Connect
With the smart Husqvarna Connect app, you’ll have easy access to tips, manuals and spare part recommendations. The app also provides additional information such as runtime and charging status as well as maintenance and service needs.
Easy-access controls
Controls are easy accessible and designed for optimum user comfort.
Specifications | Art No: 970542710 |
|---|---|
| Output shaft power | 9.6 kW |
| Weight (excl. cutting equipment) | 240 kg |
| Cylinder displacement | 603 cm³ |
| Weight (complete product w/o side packed articles) | 240 kg |
| Fuel tank volume | 12 l |
| Sound pressure level at operators ear | 86 dB(A) |
| Base machine, height | 118.1 cm |
| Base machine, length | 204.4 cm |
| Base machine, width | 88.3 cm |
| Battery capacity | 24 Ah |
| Battery pack weight | 7.2 kg |
| Battery voltage | 12 V |
| Cutting height max | 75 mm |
| Cutting height min | 25 mm |
| Cutting width, max | 112 cm |
| Cutting width, min | 94 cm |
| Fuel consumption | 349 g/kWh |
| Fuel tank volume | 3.17 gal (US) |
| Gross weight towed | 125 kg |
| Ground clearance | 120 mm |
| Net power at preset rpm | 2900 rpm |
| Net power at preset rpm Energy | 9.6 kW |
| Sound power level, guaranteed (LWA) | 98 dB(A) |
| Sound power level, measured | 97 dB(A) |
| Speed forward max | 9 km/h |
| Speed reverse max | 8.0 km/h |
| Uncut circle | 30 cm |
| Vibration level seat | 0.7 m/s² |
| Vibration level steering wheel | 2.5 m/s² |
| Wheelbase | 88.7 cm |
